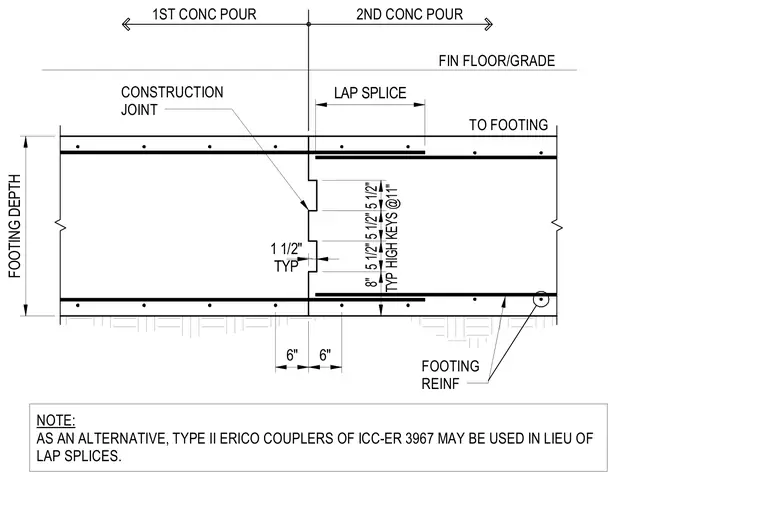

A concrete footing construction joint between first and second concrete pours incorporates high keys spaced at eleven inches on center with a typical depth of one and one-half inches. Footing reinforcement continues across the joint via lap splices or optional Type II mechanical couplers. As an alternative to standard lap splices, Type II Erico couplers of ICC-ER 3967 may be used.
CONSTRUCTION JOINT FOOTING REINF 1ST CONC POUR 2ND CONC POUR FIN FLOOR/GRADE TO FOOTING NOTE: AS AN ALTERNATIVE, TYPE II ERICO COUPLERS OF ICC-ER 3967 MAY BE USED IN LIEU OF LAP SPLICES. FOOTING DEPTH LAP SPLICE 6" 6" TYP 8" 5 1/2" HIGH KEYS @11" 5 1/2" 5 1/2" TYP 1 1/2"
