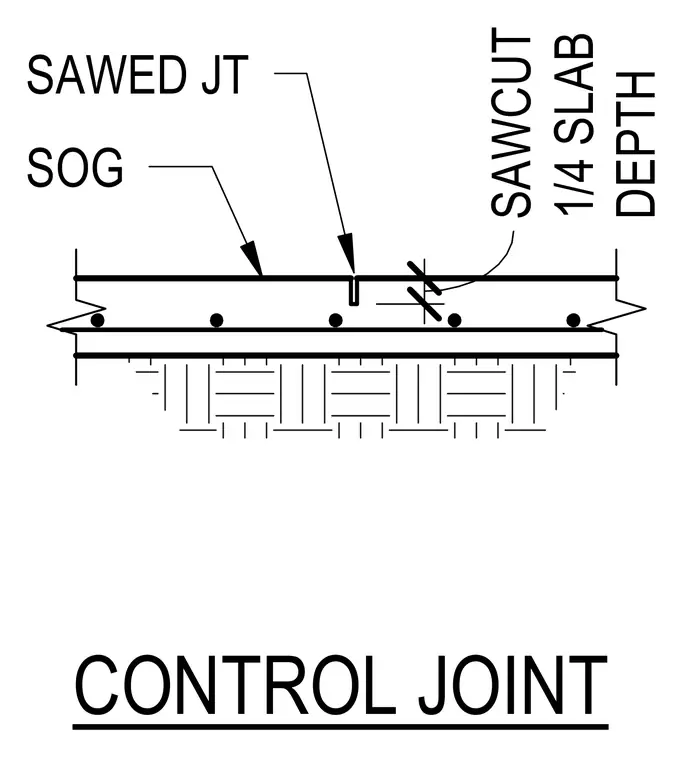

A sawed control joint in a concrete slab on grade consists of a sawcut extending to one-fourths of the total slab depth. Reinforcing steel runs continuously through the concrete section over compacted subgrade.
