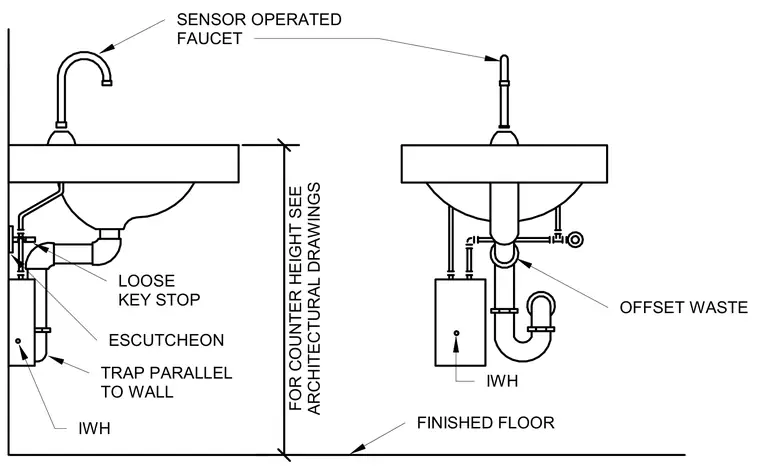

An instantaneous electric water heater is mounted to the wall beneath a lavatory sink with an offset waste trap running parallel to the wall. Water supply lines feature loose key stops with escutcheons connecting to a sensor-operated faucet above the counter. Counter height is coordinated per architectural drawings relative to the finished floor.
SENSOR OPERATED FAUCET OFFSET WASTE TRAP PARALLEL TO WALL LOOSE KEY STOP ESCUTCHEON FINISHED FLOOR FOR COUNTER HEIGHT SEE ARCHITECTURAL DRAWINGS IWH IWH
