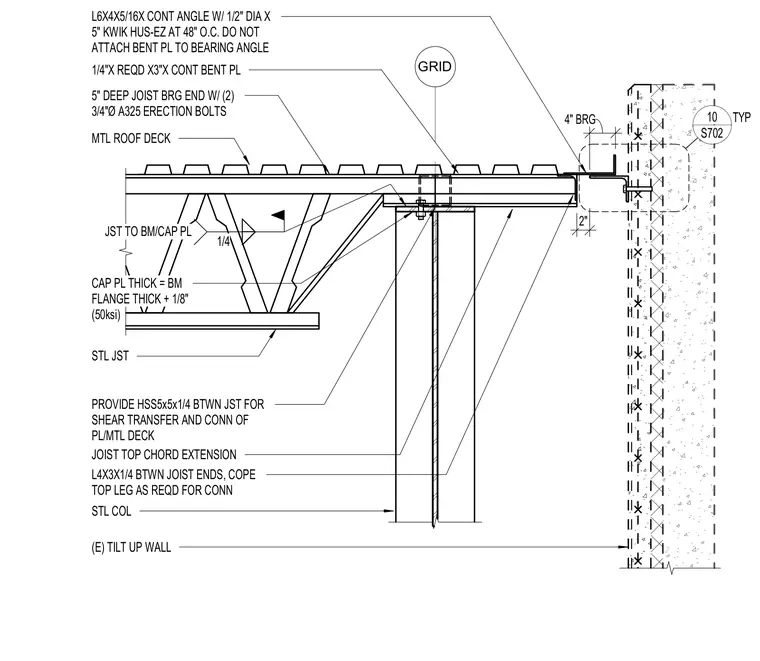

A five-inch deep steel joist bearing end is secured to a steel column cap plate using two three-quarter-inch diameter A325 erection bolts with a one-quarter-inch fillet weld. The column cap plate has a thickness equal to the beam flange thickness plus one-eighth inch of fifty ksi steel. A continuous bent plate is anchored to an L6x4x5/16 continuous angle with half-inch diameter by five-inch Kwik HUS-EZ anchors at forty-eight inches on center, left unattached to the bearing angle. A hollow structural section measuring 5x5x1/4 is provided between joists for shear transfer and connection of the plate and metal deck, leaving a two-inch joist top chord extension. An L4x3x1/4 angle spans between joist ends with the top leg coped as required for connection to the existing tilt-up wall which provides four inches of bearing.
STL JST 5" DEEP JOIST BRG END W/ (2) 3/4"Ø A325 ERECTION BOLTS MTL ROOF DECK STL COL CAP PL THICK = BM FLANGE THICK + 1/8" (50ksi) GRID (E) TILT UP WALL 4" BRG 1/4"X REQD X3"X CONT BENT PL L6X4X5/16X CONT ANGLE W/ 1/2" DIA X 5" KWIK HUS-EZ AT 48" O.C. DO NOT ATTACH BENT PL TO BEARING ANGLE PROVIDE HSS5x5x1/4 BTWN JST FOR SHEAR TRANSFER AND CONN OF PL/MTL DECK 1/4 JST TO BM/CAP PL S702 10 TYP JOIST TOP CHORD EXTENSION 2" L4X3X1/4 BTWN JOIST ENDS, COPE TOP LEG AS REQD FOR CONN
