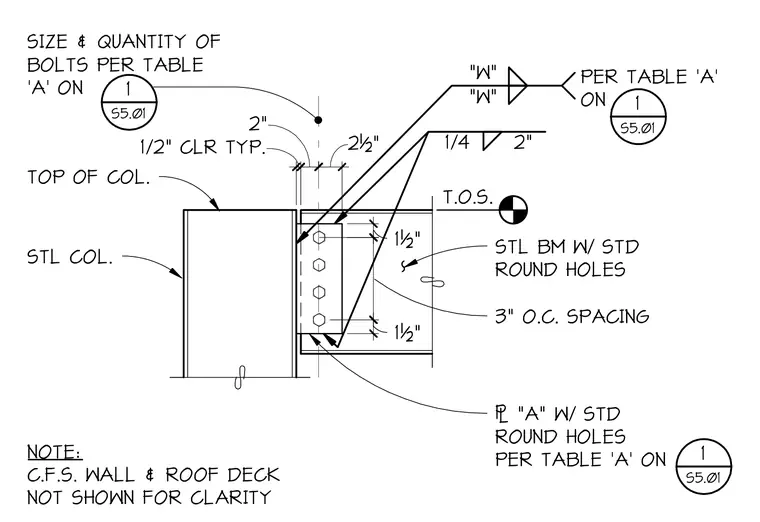

A structural steel beam with standard round holes connects to a steel column face via a shear tab plate. The connection utilizes bolts sized and quantified per Table A on sheet S5.01, maintaining a one-half inch typical clearance. A plate designated as plate A with standard round holes is welded to the beam web using a one-quarter inch fillet weld spaced at two inches. The top of steel for the beam aligns relative to the top of the column per sheet S5.01. Cold-formed steel wall and roof deck are omitted from the drawing for clarity.
1/2" CLR TYP. 2" 2½" SIZE & QUANTITY OF BOLTS PER TABLE 'A' ON . 1 ½" 9" 1 1 /2" & "A" W/ STD ROUND HOLES PER TABLE 'A' ON T.O.S. "W" "W" STL BM W/ STD ROUND HOLES STL COL. 1½" 1½" TOP OF COL. PER TABLE 'A' ON 1 S5.01 1 S5.01 3" O.C. SPACING 1/4 2" 1 S5.01 NOTE: C.F.S. WALL & ROOF DECK NOT SHOWN FOR CLARITY
