Structural · S-7BGPN

Typical Cantilever Connection with Top Plate

Materials

Concrete Reinforced Concrete Steel Timber / Wood Metal (misc.)

Elements

Beams Walls Floors / Slabs Decks Anchors / Embeds Connections / Plates Reinforcing

Connections

Bolted Connection Rebar Splice / Development Deck Attachment Embed Plate

About this detail

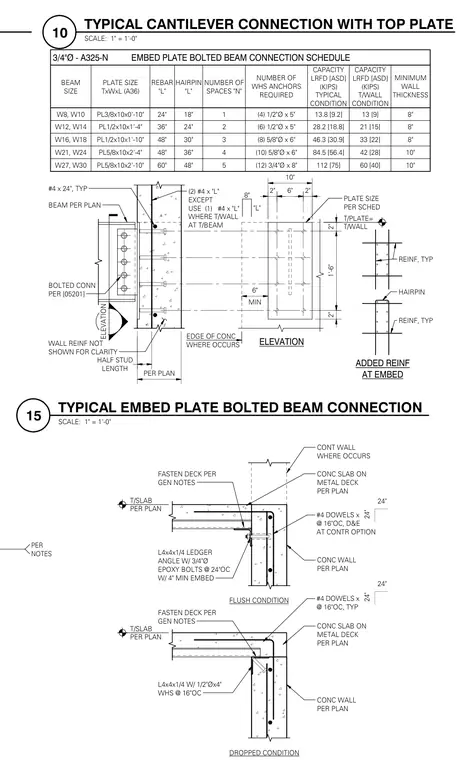

A structural steel beam frames into a reinforced concrete wall using an embed plate and a bolted connection sized per plan. Additional reinforcing includes number four hairpins and dowels placed at spacing specified on the drawings. A schedule outlines plate sizes, anchor requirements, and capacities for various beam sizes. Edge conditions and slab elevations are coordinated with the metal deck per general notes.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
