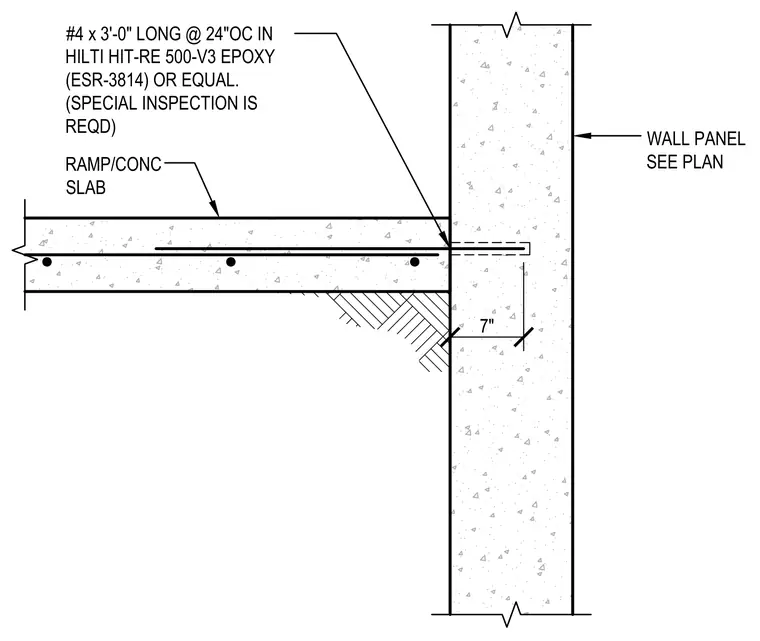

A concrete ramp or slab abuts a seven-inch thick concrete wall panel and connects via epoxy-set dowels. Number four reinforcing bars, three feet long, anchor into the wall at twenty-four inches on center using Hilti Hit-Re 500-V3 epoxy or equal per ESR-3814. Special inspection is required for the adhesive anchor installation.
7" WALL PANEL SEE PLAN RAMP/CONC SLAB #4 x 3'-0" LONG @ 24"OC IN HILTI HIT-RE 500-V3 EPOXY (ESR-3814) OR EQUAL. (SPECIAL INSPECTION IS REQD)
