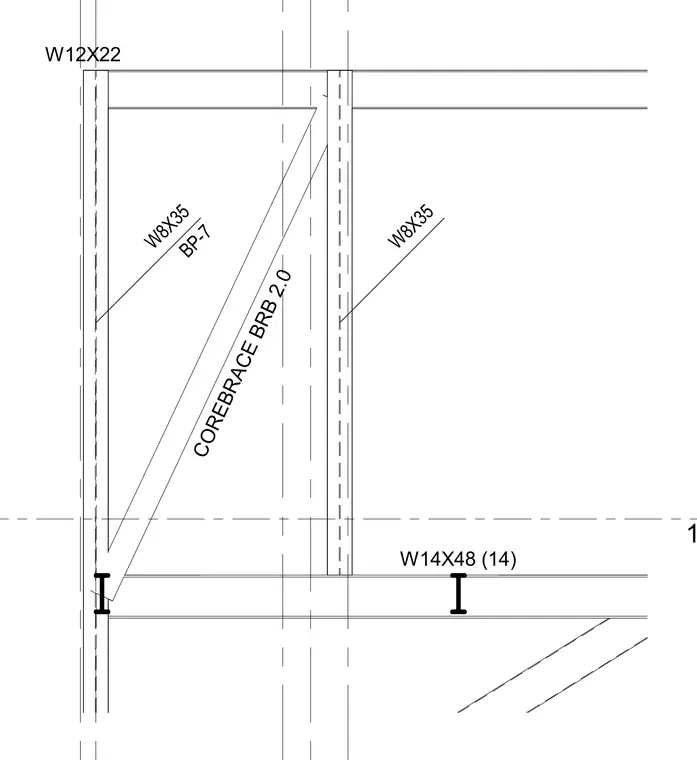

A CoreBrace buckling-restrained brace designated as BRB 2.0 frames into a structural steel assembly at the 132-foot elevation. The diagonal brace intersects a vertical W8X35 column and a horizontal W14X48 beam with a gusset plate designated as BP-7. Additional vertical framing utilizes W8X35 and W12X22 wide flange shapes.
