Structural · S-7B77V

Metal Stud Jamb Stud at Sill Track and Head Track Connection

Materials

Concrete Timber / Wood Metal (misc.)

Elements

Windows Floors / Slabs Decks

Connections

Deck Attachment

About this detail

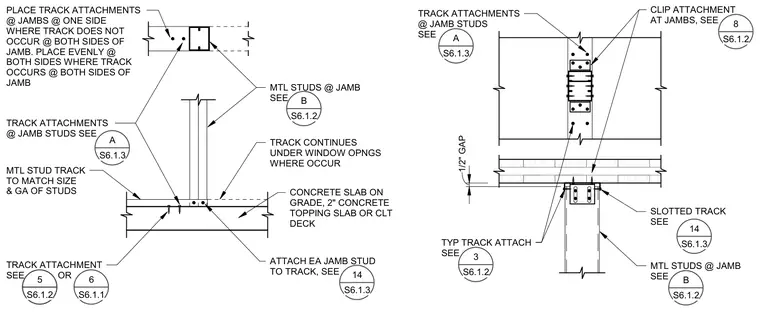

Metal framing connections at window and opening jambs interface metal stud tracks with a concrete slab-on-grade, topping slab, or cross-laminated timber deck. The metal stud track matches the size and gauge of the studs, continuing under window openings where required. Track attachments are placed at jamb studs on one or both sides depending on track occurrence, and each jamb stud is secured to the track. Additional clip attachments provide lateral support at the jambs with a designated half-inch gap, incorporating slotted track details to accommodate vertical movement.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
