Canopy Section at Glass Railing and Steel Beam

Materials

Concrete Steel Cold-formed Steel Timber / Wood Glass / Glazing Metal (misc.)

Elements

Beams Facades / Cladding Railings / Guards Canopies Ceilings Decks Arches

Connections

HSS Connection

About this detail

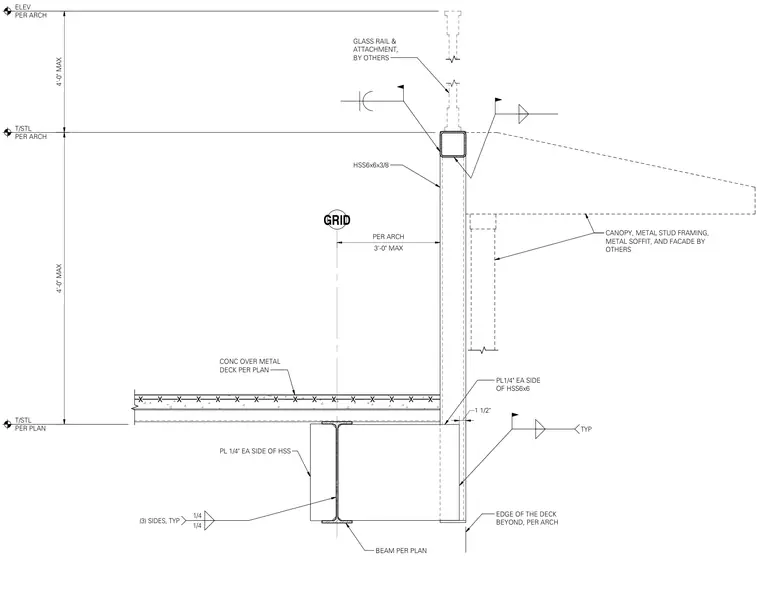

An HSS6x6x3/8 structural steel tube column extends upward from a supporting steel beam sized per plan, offset from the building grid by a maximum of three feet. The HSS column features quarter-inch plates welded to each side with quarter-inch fillet welds on three sides, connecting to the support beam below and adjacent to the concrete over metal deck assembly. A glass rail attachment sits at the top of the HSS column, while canopy framing, metal stud framing, metal soffit, and facade elements are provided by others.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
