A davit socket pedestal is mounted atop a structural steel beam, with the beam web connected to a stiffener plate via a one-quarter-inch fillet weld. Three-eighths-inch stiffener plates are welded to each side of the beam web and column, complemented by L6x6x3/8 angle braces typically used on unnotched sides. A one-half-inch by four-inch plate sized to the beam width plus one inch is attached to the beam flanges with one-quarter-inch fillet welds. Three-eighth-inch welds are applied on all sides at the socket pedestal assembly. The supporting beam connects to the main column as specified in the structural framing plan.

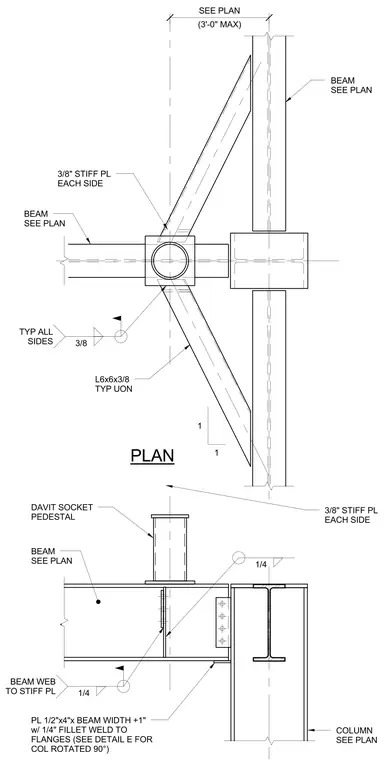

PLAN PL 1/2"x4"x BEAM WIDTH +1" w/ 1/4" FILLET WELD TO FLANGES (SEE DETAIL E FOR COL ROTATED 90°) BEAM SEE PLAN DAVIT SOCKET PEDESTAL 3/8" STIFF PL EACH SIDE COLUMN SEE PLAN L6x6x3/8 TYP UON BEAM SEE PLAN 3/8" STIFF PL EACH SIDE 1 1 BEAM SEE PLAN 1/4 1/4 BEAM WEB TO STIFF PL (3'-0" MAX) SEE PLAN 3/8 TYP ALL SIDES
