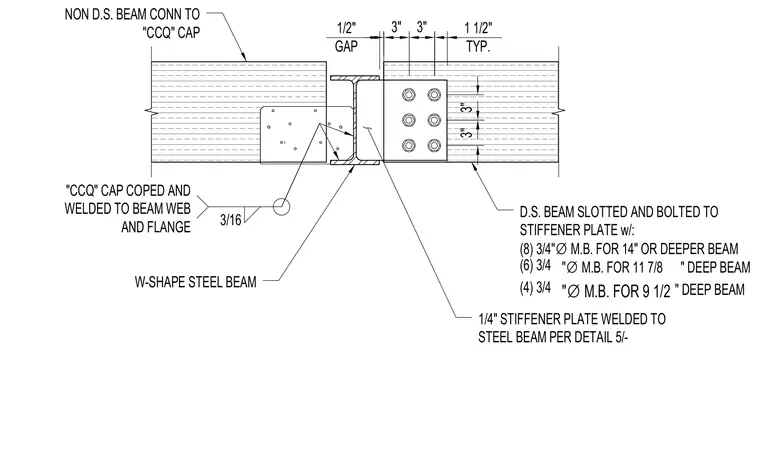

A wood beam frames into a W-shape steel beam using two distinct connection types across a half-inch gap. The right side features a wood beam slotted over a one-quarter-inch stiffener plate welded to the steel beam web, fastened with three-quarter-inch diameter machine bolts scaled in quantity by beam depth from four to eight bolts. The left side features a non-double-sided wood beam connected via a CCQ cap, which is coped and welded to the steel beam web and flange with a three-sixteenth-inch fillet weld.
3" 3" 3" 1 1/2" TYP. 1/2" GAP 3" D.S. BEAM SLOTTED AND BOLTED TO STIFFENER PLATE w/: (8) 3/4" ∅ M.B. FOR 14" OR DEEPER BEAM (6) 3/4 " ∅ M.B. FOR 11 7/8 " DEEP BEAM (4) 3/4 " ∅ M.B. FOR 9 1/2 " DEEP BEAM 1/4" STIFFENER PLATE WELDED TO STEEL BEAM PER DETAIL 5/- W-SHAPE STEEL BEAM NON D.S. BEAM CONN TO "CCQ" CAP 3/16 "CCQ" CAP COPED AND WELDED TO BEAM WEB AND FLANGE
