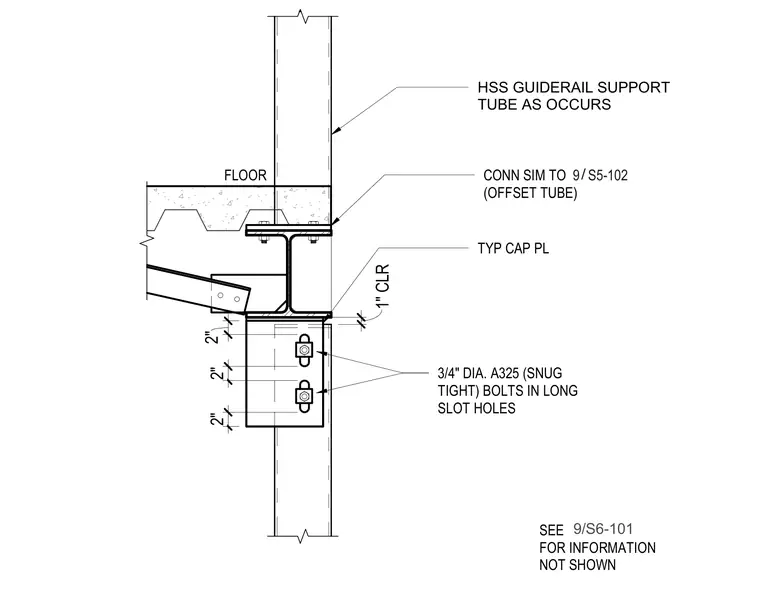

An HSS guiderail support tube attaches to the floor framing with a typical cap plate and a connection similar to detail 9/S5-102 for offset tubes. The assembly incorporates three-quarter-inch diameter A325 snug-tight bolts installed in long slot holes, providing vertical adjustment clearance. A one-inch clearance is maintained at the structural interface. The tube passes adjacent to the concrete floor slab on metal deck.
FLOOR 2" 2" 2" 1" CLR TYP CAP PL CONN SIM TO (OFFSET TUBE) SEE FOR INFORMATION NOT SHOWN 9/S6-101 HSS GUIDERAIL SUPPORT TUBE AS OCCURS 3/4" DIA. A325 (SNUG TIGHT) BOLTS IN LONG SLOT HOLES / 9 S5-102
