Panel edges are tied together at the panel joint using stiff angles secured with one-quarter-inch diameter by four-inch long Simpson SDS screws spaced at six inches on center vertically and horizontally. A continuous three-eighths-inch by three-inch plate spans across the joint and is welded with a one-quarter-inch fillet weld. A one and one-half-inch edge distance is maintained from the toe of the angle. Panels are sized per plan and set relative to the top of panel elevation datum.

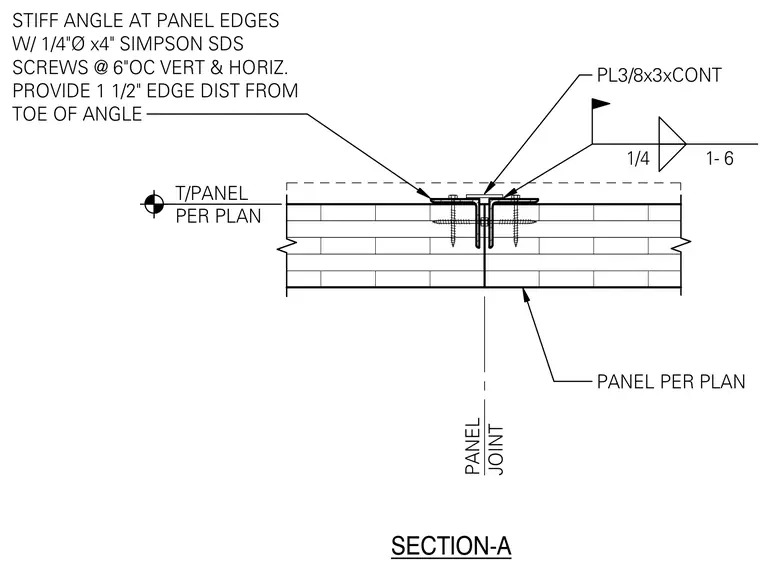

PANEL JOINT PANEL PER PLAN T/PANEL PER PLAN PL3/8x3xCONT 1/4 1- 6 STIFF ANGLE AT PANEL EDGES W/ 1/4"Ø x4" SIMPSON SDS SCREWS @ 6"OC VERT & HORIZ. PROVIDE 1 1/2" EDGE DIST FROM TOE OF ANGLE SECTION-A $ P
