Slab Edge and Perimeter Stud Framing Detail at Steel Beam

Materials

Concrete Steel Cold-formed Steel Glass / Glazing Metal (misc.)

Elements

Beams Walls Windows Facades / Cladding Floors / Slabs Decks Arches Bracing

Connections

Bracing Connection

About this detail

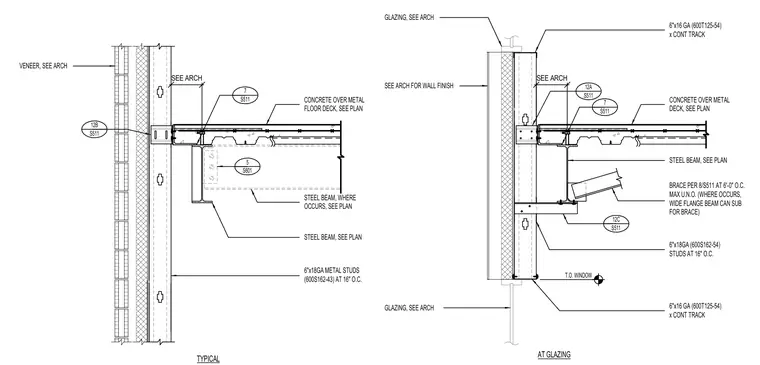

Perimeter slab edge condition at a steel floor deck with concrete fill, framing into structural steel beams with cold-formed metal stud backup walls. The assembly features concrete over metal floor deck bearing on structural steel beams sized per plan. Exterior stud framing consists of six-inch 18-gauge metal studs spaced at sixteen inches on center, with continuous tracks and bracing configured per detail references. At glazing conditions, continuous tracks and supplemental bracing frame around window heads with top of window elevations referenced. Veneer and wall finishes are coordinated per architectural drawings.
