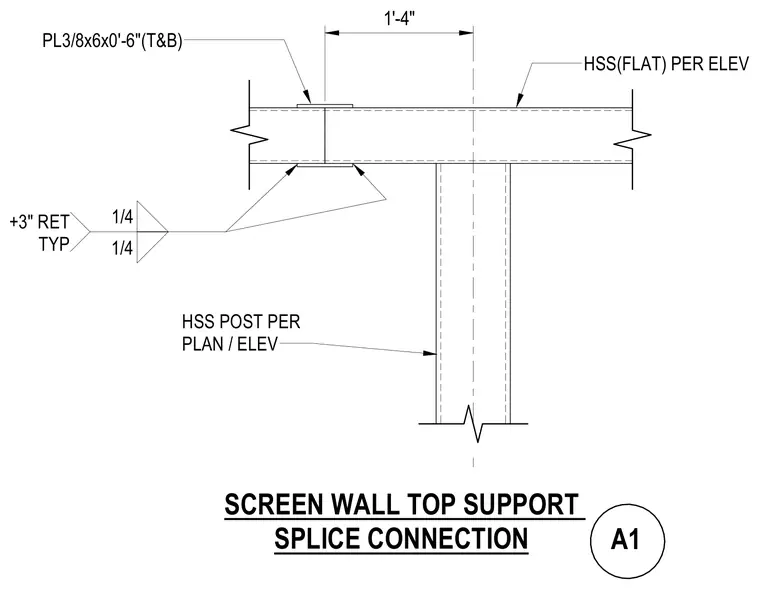

An HSS flat member connects to an HSS post per plan or elevation with a spliced joint. Three-inch return welds sized at one-quarter inch are called out typically at the plate connections. Two 3/8-inch by 6-inch by 0-foot 6-inch top and bottom plates bridge the splice along the hollow structural section. The vertical HSS post aligns below the horizontal member per architectural and structural plans.
SCREEN WALL TOP SUPPORT SPLICE CONNECTION A1 1/4 1/4 +3" RET TYP 1'-4" PL3/8x6x0'-6"(T&B) HSS POST PER PLAN / ELEV HSS(FLAT) PER ELEV
