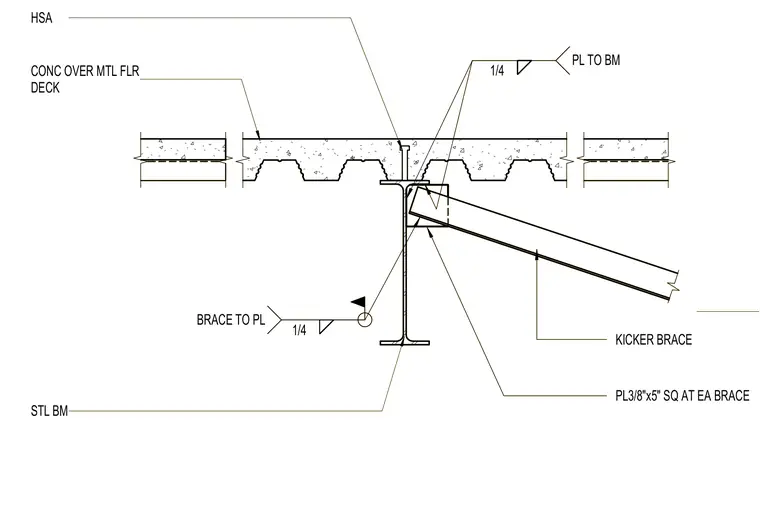

A kicker brace connects to a structural steel beam supporting a concrete slab over metal floor deck using a three-eighths-inch by five-inch square plate welded at each brace. The connection features a one-quarter-inch fillet weld securing the plate to the beam and a one-quarter-inch fillet weld securing the brace to the plate, with the weld annotated by field-weld and all-around symbols. An HSA anchor is embedded in the concrete fill above the beam flange.
PL3/8"x5" SQ AT EA BRACE KICKER BRACE STL BM CONC OVER MTL FLR DECK HSA 1/4 PL TO BM 1/4 BRACE TO PL PL3/8"x5" SQ AT EA BRACE KICKER BRACE STL BM CONC OVER MTL FLR DECK HSA 1/4 PL TO BM 1/4 BRACE TO PL
