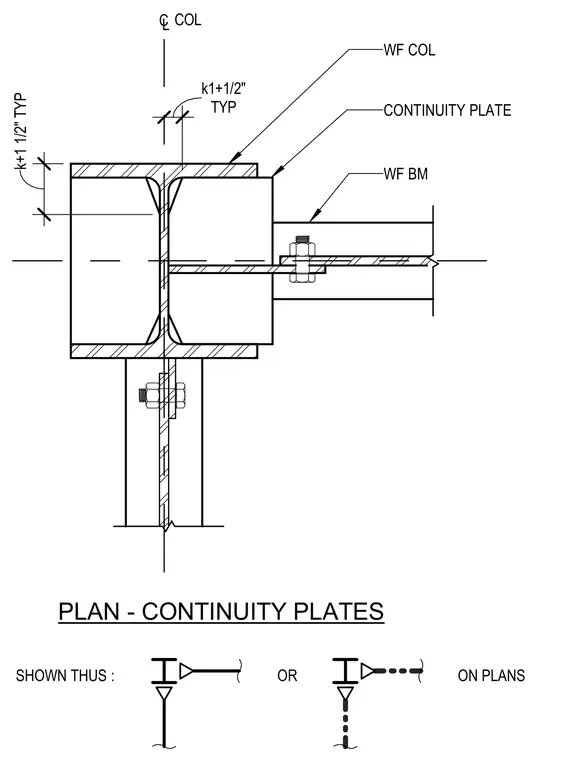

Continuity plates are aligned with the flanges of a wide flange beam framing into a wide flange column. The plates match the width of the column flange and extend inward from the column web. Dimensions indicate typical offsets of k plus one and a half inches from the column centerline. Shear tabs and bolted connections tie the framing beam to the column web and flange.
WF COL WF BM CONTINUITY PLATE TYP k1+1/2" k+1 1/2" TYP PLAN - CONTINUITY PLATES SHOWN THUS : C L COL OR ON PLANS
