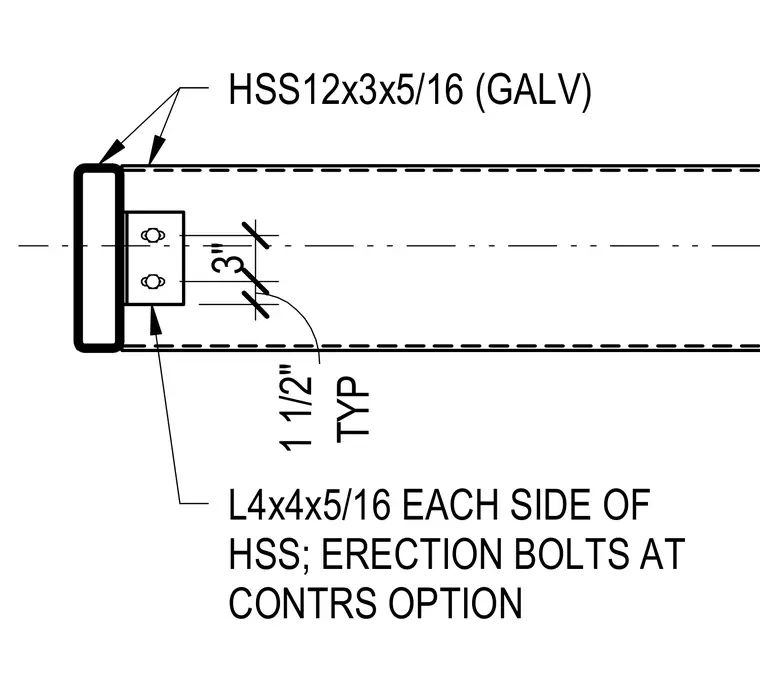

An HSS12x3x5/16 galvanized structural steel member connects using L4x4x5/16 angles placed on each side. Erection bolts are provided at the contractor's option. The angles are spaced at three inches typical with a one-and-a-half-inch clearance.
3" TYP 1 1/2" L4x4x5/16 EACH SIDE OF HSS; ERECTION BOLTS AT CONTRS OPTION HSS12x3x5/16 (GALV)
