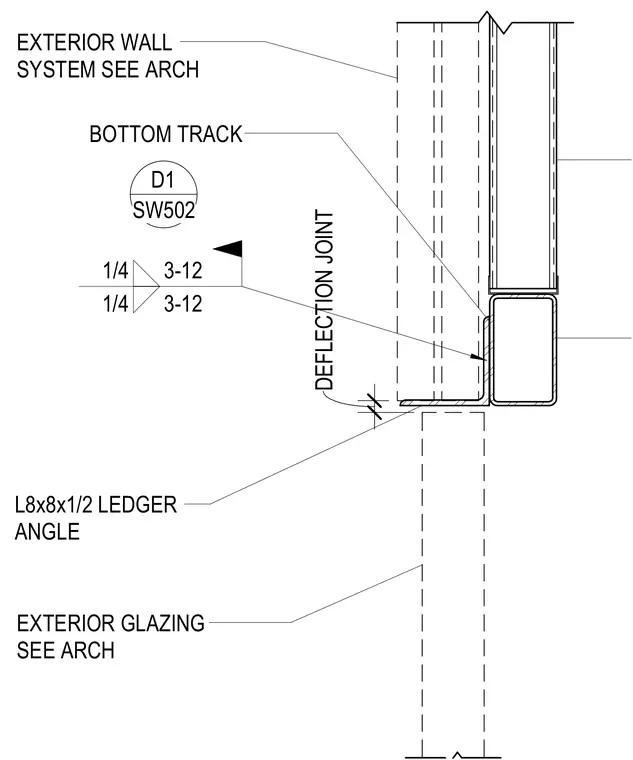

A steel stud bottom track bears against an L8x8x1/2 ledger angle, forming a deflection joint with a vertical clearance gap. The connection is secured with welds indicated as one-quarter inch fillets spaced at three to twelve inches. The exterior wall system and exterior glazing connect adjacently per architectural drawings.
EXTERIOR WALL SYSTEM SEE ARCH L8x8x1/2 LEDGER ANGLE DEFLECTION JOINT SW502 D1 BOTTOM TRACK 1/4 3-12 1/4 3-12 EXTERIOR GLAZING SEE ARCH
