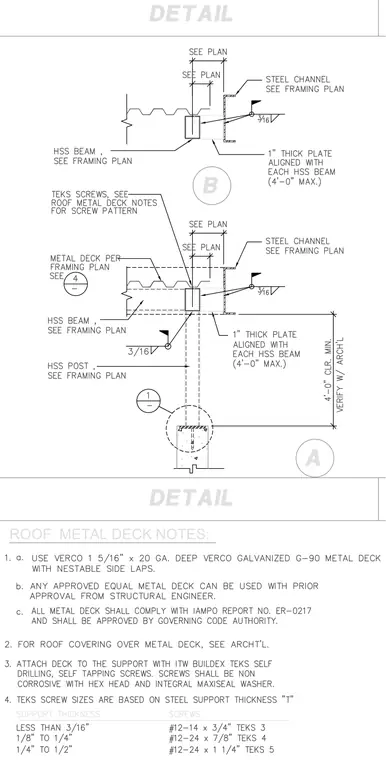

Roof metal deck details illustrate the connection of metal deck to structural steel framing members using ITW Buildex Teks self-drilling, self-tapping screws with hex heads and integral Maxiseal washers. The framing incorporates hollow structural section beams, hollow structural section posts, and steel channels welded with three-sixteenths inch fillet welds and one inch thick plates aligned with each hollow structural section beam at a maximum spacing of four feet zero inches. Verco one and five-sixteenths inch by twenty gauge deep Verco galvanized G-ninety metal deck with nestable side laps is specified, complying with IAPMO report number ER-zero two one seven. Screw sizes are selected based on steel support thickness ranging from under three-sixteenths inch to one-half inch using #12-14 and #12-24 Teks screws.
