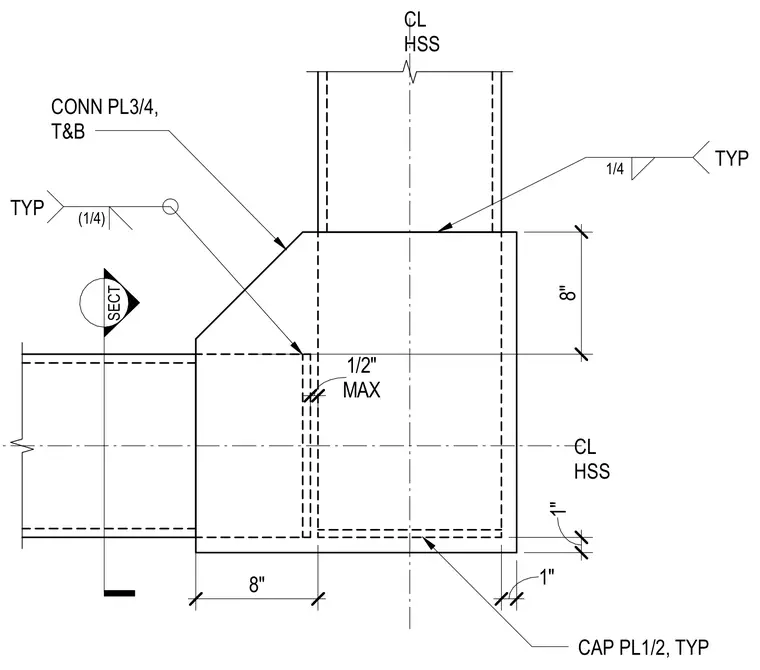

A hollow structural section column frames into a horizontal member using a three-quarter-inch connection plate at the top and bottom. A one-half-inch cap plate is welded to the assembly with a typical one-quarter-inch fillet weld. A clearance of one-half-inch maximum is maintained at the joint intersection. Dimensions indicate an eight-inch spacing from the centerline of the column to the connection face.
SECT 8" CL HSS CL HSS TYP (1/4) TYP 1/4 CAP PL1/2, TYP 1" 1" 8" CONN PL3/4, T&B MAX 1/2"
