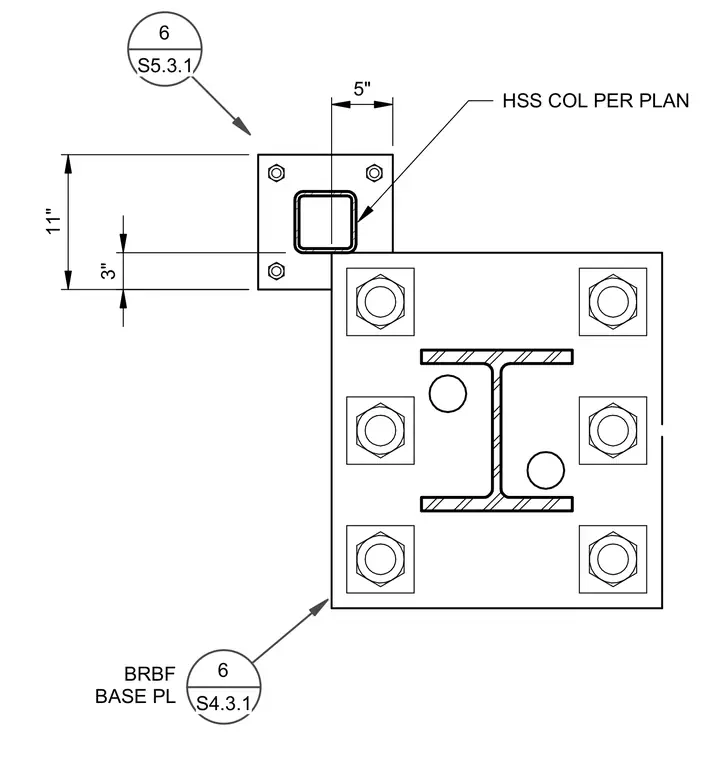

A buckling-restrained braced frame base plate connects to the structural support with multiple anchor bolts arranged around the column profile. An adjacent hollow structural section column is positioned with specific offsets of three inches and five inches dimensioned from the main base plate. Detail references point to related structural sheets for further coordination.
