A structural steel post connects to a concrete slab on metal deck using a top embedded plate and two side connection plates. The embedded half-inch thick A36 steel plate features four three-quarter-inch diameter headed studs welded to the top flange with one-and-a-half-inch edge distances. Two three-eighths-inch thick A36 plates are welded to the post sides with a quarter-inch fillet weld. Two seven-eighths-inch diameter A307 through bolts secure the post through two-inch vertical slotted holes in the connection plates, allowing vertical movement with a one-and-a-half-inch maximum clearance.

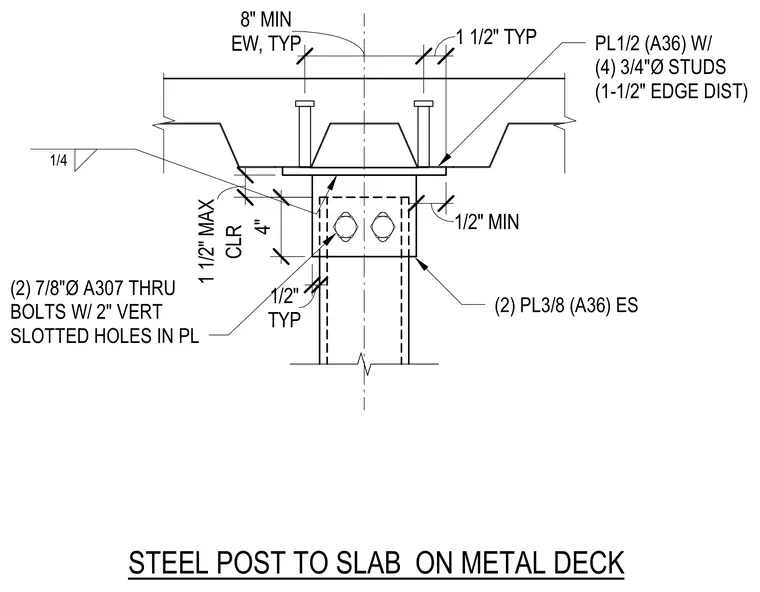

STEEL POST TO SLAB ON METAL DECK CLR 1 1/2" MAX TYP 1/2" EW, TYP 8" MIN 1 1/2" TYP 1/2" MIN 4" PL1/2 (A36) W/ (4) 3/4"Ø STUDS (1-1/2" EDGE DIST) (2) PL3/8 (A36) ES (2) 7/8"Ø A307 THRU BOLTS W/ 2" VERT SLOTTED HOLES IN PL 1/4
