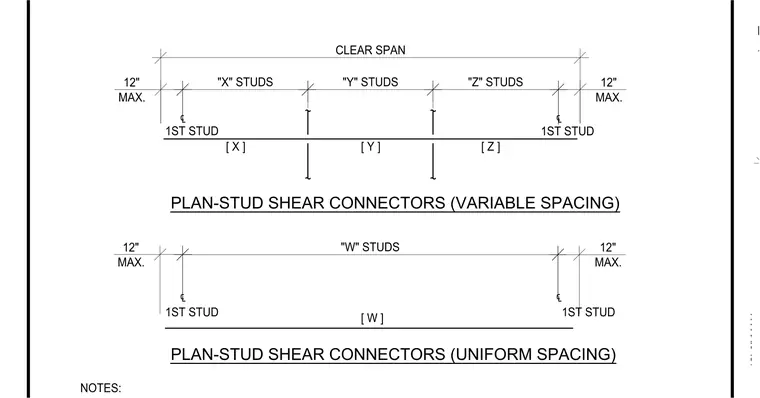

This detail defines the layout requirements for shear studs along a beam span, providing configurations for both uniform and variable spacing. For uniform spacing, the first stud is placed at a maximum of 12 inches from the beam end, with the remaining studs distributed across the clear span. For variable spacing, the span is divided into three distinct zones labeled X, Y, and Z, each containing a specified number of studs. The first stud in both configurations is positioned at a maximum of 12 inches from the support.
