Structural · S-7A45Z

Tilt-Up Concrete Panel to Steel Beam Connection

Materials

Concrete Steel

Elements

Floors / Slabs Arches Anchors / Embeds Connections / Plates

Connections

Welded Connection Bolted Connection Embed Plate Expansion / Slip Connection

About this detail

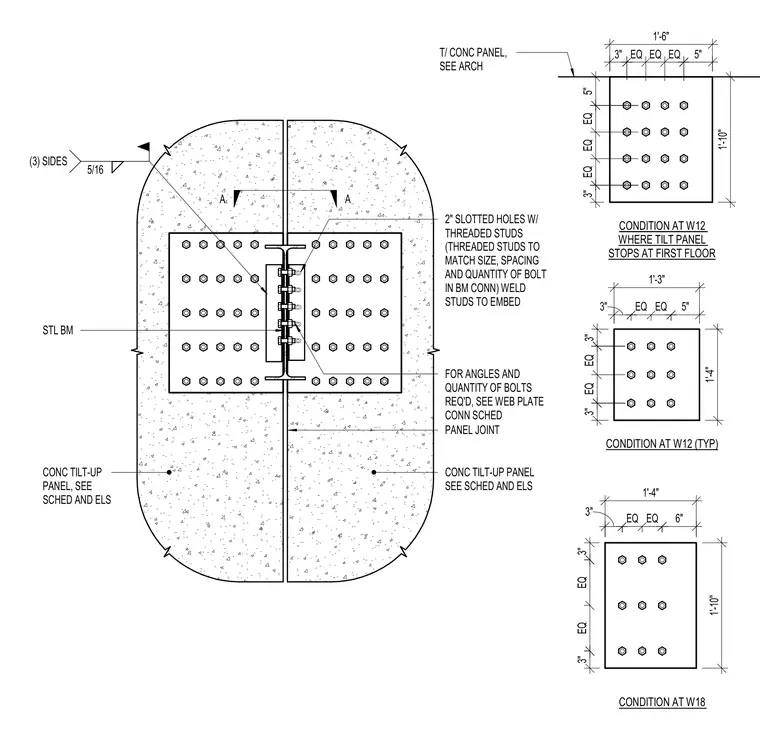

Concrete tilt-up panels connect to a steel beam at a panel joint using embedded connection plates. Two-inch slotted holes with threaded studs match the size, spacing, and quantity of the bolts in the beam connection. The threaded studs are welded to the embed plate. For angles and the required quantity of bolts, reference the web plate connection schedule. Fillet welds of five-sixteenths inch are applied to three sides. Separate embed plate conditions are detailed for W12 and W18 steel beams, including the specific condition at a W12 where the tilt panel stops at the first floor.
