An existing concrete pan joist structure supports a concrete slab on metal deck bearing on typical structural steel beams for levels 3 through 16. The assembly connects the new steel framing and metal deck system directly into the existing concrete construction. Additional information requires referencing the typical deck support detail at existing framing.

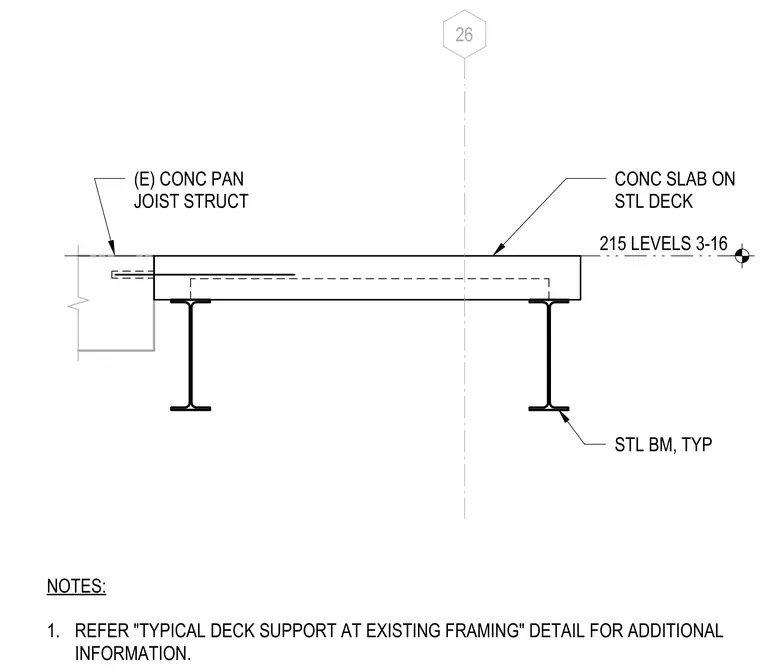

26 215 LEVELS 3-16 (E) CONC PAN JOIST STRUCT CONC SLAB ON STL DECK STL BM, TYP NOTES: 1. REFER "TYPICAL DECK SUPPORT AT EXISTING FRAMING" DETAIL FOR ADDITIONAL INFORMATION.
