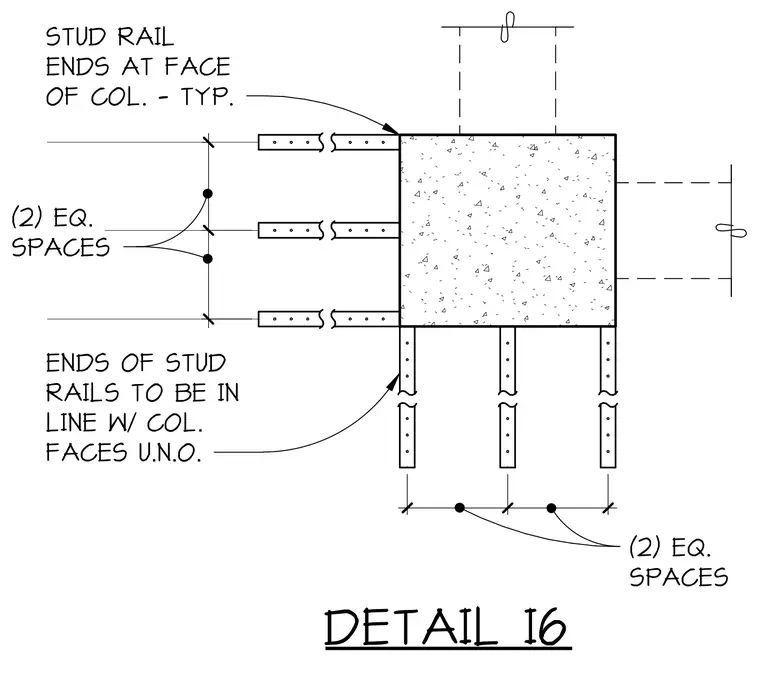

Shear stud rails are arranged orthogonally around a concrete column with equally spaced intervals. The ends of the stud rails terminate flush with the face of the column unless noted otherwise.
DETAIL I6 (2) EQ. SPACES (2) EQ. SPACES 7 3 /8 " 7 3 /8 " 8 3/ 8 " 8 3/ 8 " STUD RAIL ENDS AT FACE OF COL. - TYP. ENDS OF STUD RAILS TO BE IN LINE W/ COL. FACES U.N.O.
