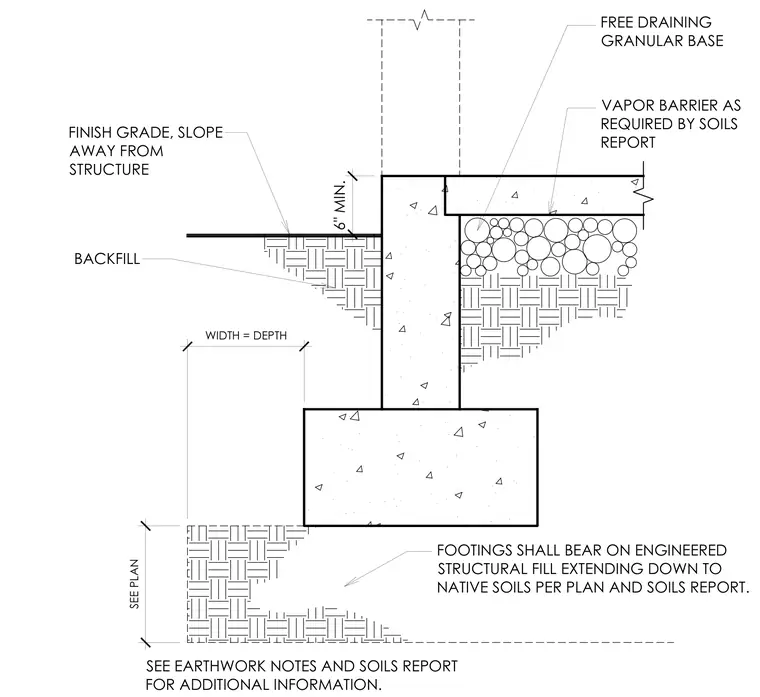

Concrete footings bear on engineered structural fill extending down to native soils per the plan and soils report, with a width equal to the depth. A free-draining granular base and vapor barrier sit beneath the concrete slab, adjacent to the foundation stem wall. Backfill is placed against the exterior, with the finish grade sloped away from the structure and maintaining a six-inch minimum clearance.
FINISH GRADE, SLOPE AWAY FROM STRUCTURE BACKFILL VAPOR BARRIER AS REQUIRED BY SOILS REPORT FREE DRAINING GRANULAR BASE WIDTH = DEPTH FOOTINGS SHALL BEAR ON ENGINEERED STRUCTURAL FILL EXTENDING DOWN TO NATIVE SOILS PER PLAN AND SOILS REPORT. SEE PLAN SEE EARTHWORK NOTES AND SOILS REPORT FOR ADDITIONAL INFORMATION. 6" MIN.
