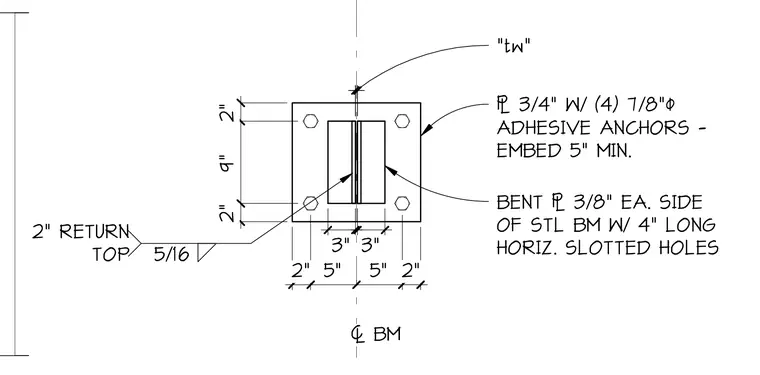

A steel beam connects via a three-quarter-inch base plate secured with four seven-eighth-inch diameter adhesive anchors embedded a minimum of five inches. Three-eighth-inch bent plates are welded to each side of the steel beam with five-sixteenth-inch fillet welds featuring two-inch returns at the top. The bent plates incorporate four-inch long horizontal slotted holes to allow movement along the connection.
2" 5" 5" 2" 2" 9" 2" 1/4" "tw" 3" BM 3/4" W/ (4) 7/8"/ ADHESIVE ANCHORS - EMBED 5" MIN. BENT 3/8" EA. SIDE OF STL BM W/ 4" LONG HORIZ. SLOTTED HOLES 5/16 2" RETURN TOP 3"
