Structural · S-78NHV

Minimum When 'B' Or 'N'

Materials

Concrete Steel Masonry / CMU

Elements

Columns Anchors / Embeds

Connections

Base Plate / Anchorage Welded Connection

About this detail

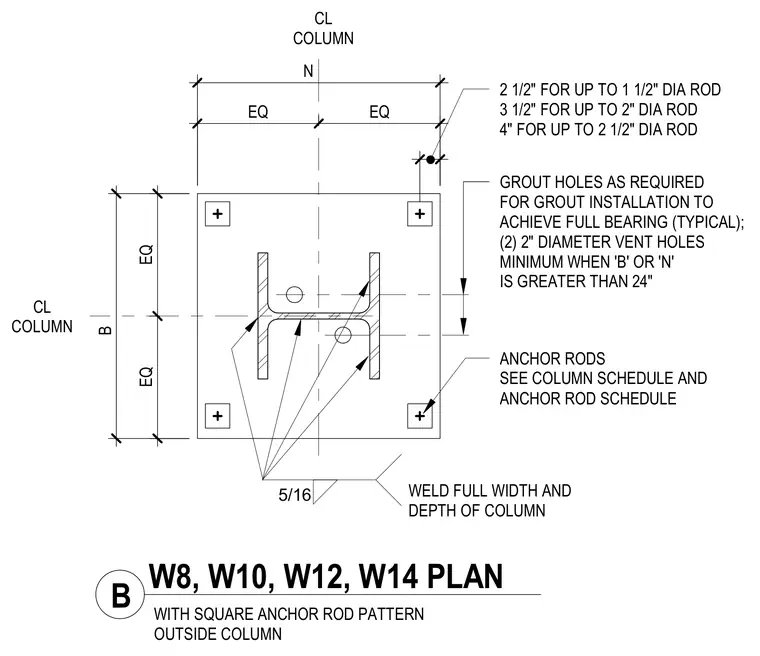

A square column base plate supports W8, W10, W12, and W14 steel columns with anchor rods positioned in a square pattern outside the column flanges. A five-sixteenth-inch fillet weld is specified along the full width and depth of the column profile. Edge distances for the anchor rods vary based on rod diameter, requiring two and a half inches for rods up to one and a half inches in diameter, three and a half inches for rods up to two inches, and four inches for rods up to two and a half inches. Two two-inch diameter vent holes are required when dimensions B or N exceed twenty-four inches. Grout holes are provided as needed to ensure complete grout installation and full bearing under the plate.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
