Structural · S-78GRD

Beam Framing Into Concrete Wall Connection

Materials

Concrete Steel

Elements

Columns Walls Floors / Slabs Decks Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development Deck Attachment Embed Plate

About this detail

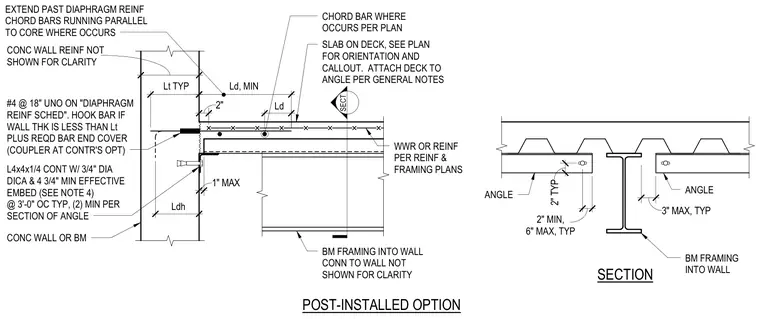

A steel beam frames into a concrete wall utilizing a continuous L4x4x1/4 angle secured with three-quarter-inch diameter post-installed anchors at 3 feet-0 inches on center, requiring a 4 3/4 inch minimum effective embedment with a minimum of two anchors per section of angle. The slab on metal deck bears over the framing, featuring #4 reinforcement bars spaced at 18 inches on center and hooked where wall thickness is less than the development length plus required cover, with an optional mechanical coupler. Chord bars extend past the diaphragm reinforcement parallel to the core, while welded wire reinforcement or conventional rebar is placed per framing plans. A secondary section view clarifies the angle placement and edge distances relative to the steel beam web.
