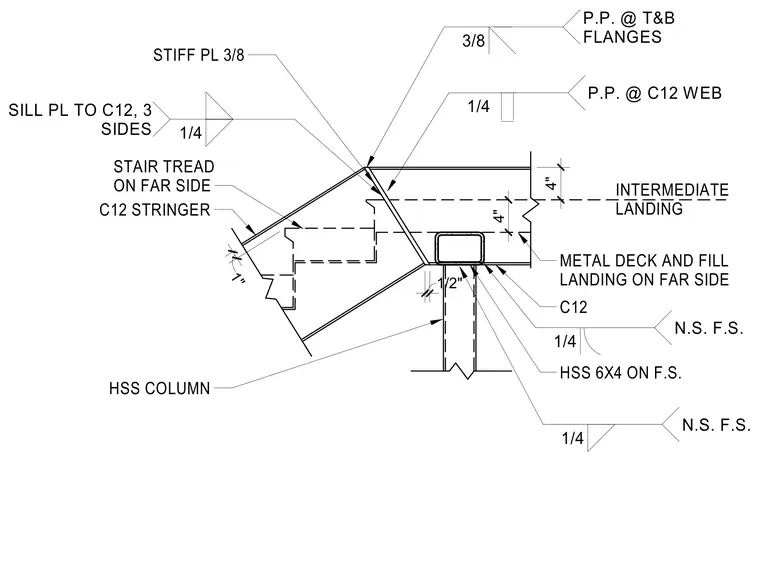

A C12 stair stringer frames into an intermediate landing constructed with metal deck and fill, supported by an HSS column and an HSS 6x4 member on the far side. A three-eighths-inch stiffener plate welds to the channel web with a quarter-inch fillet weld on three sides. Three-eighths-inch continuity plates attach to the top and bottom flanges with three-eighths-inch fillet welds. A sill plate connects the assembly with quarter-inch welds on near and far sides.
1" STIFF PL 3/8 STAIR TREAD ON FAR SIDE C12 STRINGER C12 HSS 6X4 ON F.S. METAL DECK AND FILL LANDING ON FAR SIDE INTERMEDIATE LANDING 1/4 SILL PL TO C12, 3 SIDES 3/8 P.P. @ T&B FLANGES 1/4 P.P. @ C12 WEB 4" 4" 1/2" HSS COLUMN 1/4 N.S. F.S. 1/4 N.S. F.S.
