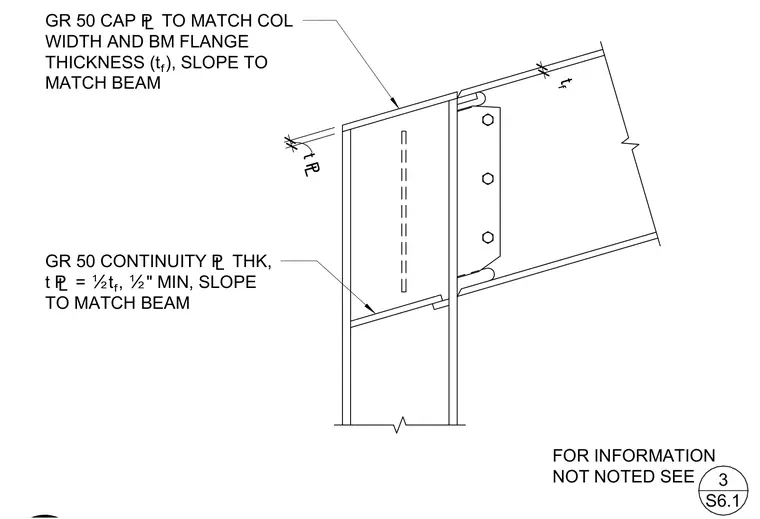

A sloped structural steel beam frames into a column with a one-sided moment connection utilizing a grade 50 cap plate sized to match the column width and beam flange thickness. Grade 50 continuity plates are provided with a thickness equal to one-half the beam flange thickness, with a one-half inch minimum, sloped to match the beam. A shear tab with three bolts connects the beam web to the column. Additional information is referenced on sheet S6.1.
FOR INFORMATION NOT NOTED SEE 3 S6.1 tô t £ GR 50 CAP £ TO MATCH COL WIDTH AND BM FLANGE THICKNESS (tô), SLOPE TO MATCH BEAM GR 50 CONTINUITY £ THK, t £ = Ïtô, Ï" MIN, SLOPE TO MATCH BEAM
