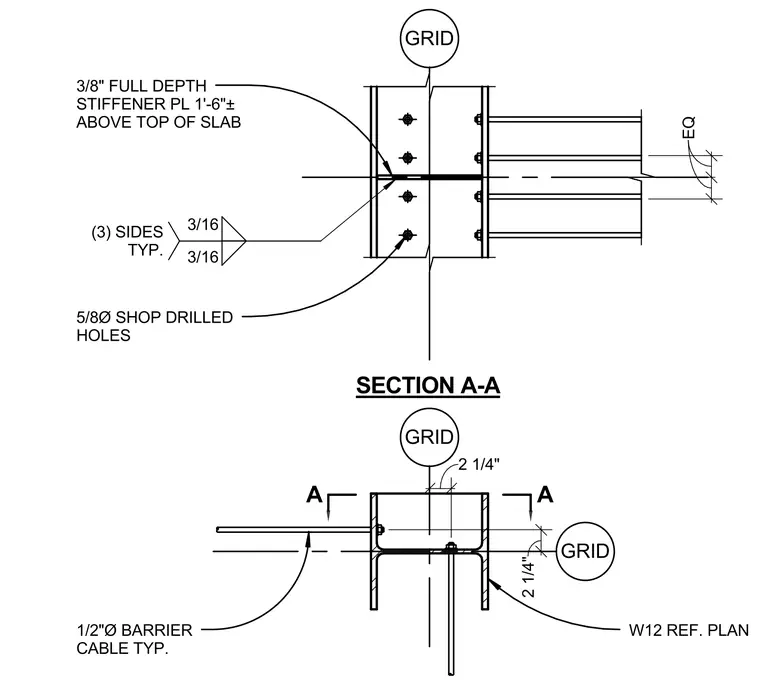

A W12 structural steel column connects with a three-eighths inch full depth stiffener plate positioned one foot six inches above the top of the slab. Shop-drilled holes of five-eighths inch diameter accommodate connections, supplemented by typical three-sixteenths inch welds on three sides. One-half inch diameter barrier cables attach to the column flange at typical intervals. Section A-A provides alignment dimensions relative to the grid lines.
SECTION A-A A A GRID GRID GRID EQ EQ 3/8" FULL DEPTH STIFFENER PL 1'-6"± ABOVE TOP OF SLAB 5/8Ø SHOP DRILLED HOLES 1/2"Ø BARRIER CABLE TYP. W12 REF. PLAN 2 1/4" 2 1/4" 3/16 3/16 (3) SIDES TYP.
