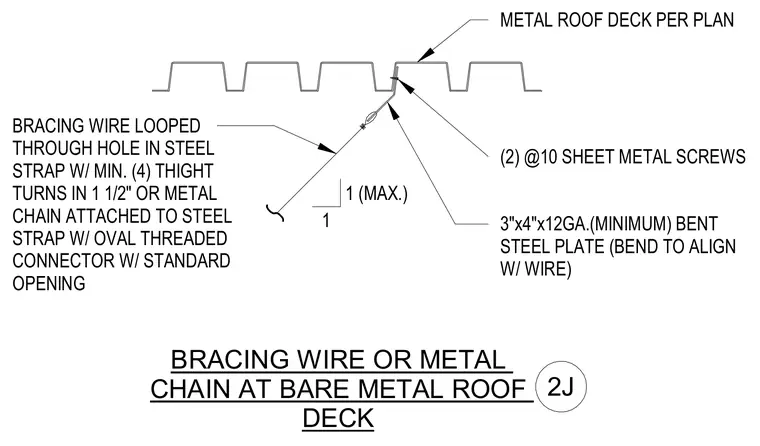

A bracing wire or metal chain is attached to a bare metal roof deck sized per plan. The connection utilizes a 3 inch by 4 inch by 12 gauge minimum bent steel plate bent to align with the wire, fastened to the roof deck with two number 10 sheet metal screws. The bracing wire is looped through a hole in the steel strap with a minimum of four tight turns in 1 and 1/2 inches, or a metal chain is attached to the steel strap using an oval threaded connector with a standard opening.
BRACING WIRE OR METAL CHAIN AT BARE METAL ROOF DECK 2J METAL ROOF DECK PER PLAN 3"x4"x12GA.(MINIMUM) BENT STEEL PLATE (BEND TO ALIGN W/ WIRE) (2) @10 SHEET METAL SCREWS 1 1 (MAX.) BRACING WIRE LOOPED THROUGH HOLE IN STEEL STRAP W/ MIN. (4) THIGHT TURNS IN 1 1/2" OR METAL CHAIN ATTACHED TO STEEL STRAP W/ OVAL THREADED CONNECTOR W/ STANDARD OPENING
