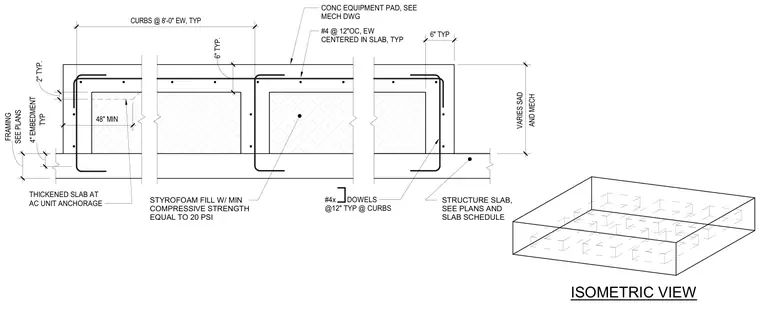

A concrete equipment pad bears on a structural slab with a forty-eight-inch minimum thickened slab at AC unit anchorage areas. The assembly incorporates styrofoam fill with a minimum compressive strength equal to twenty pounds per square inch beneath the raised pad. Number four reinforcing bars spaced at twelve inches on center each way are centered in the slab. Number four dowels spaced at twelve inches on center are tied into the curbs and structural slab.
CONC EQUIPMENT PAD, SEE MECH DWG #4 @ 12"OC, EW CENTERED IN SLAB, TYP STRUCTURE SLAB, SEE PLANS AND SLAB SCHEDULE STYROFOAM FILL W/ MIN COMPRESSIVE STRENGTH EQUAL TO 20 PSI 6" TYP TYP 4" EMBEDMENT CURBS @ 8'-0" EW, TYP #4x DOWELS @12" TYP @ CURBS AND MECH VARIES SAD SEE PLANS FRAMING ISOMETRIC VIEW 6" TYP. 2" TYP. 48" MIN THICKENED SLAB AT AC UNIT ANCHORAGE
