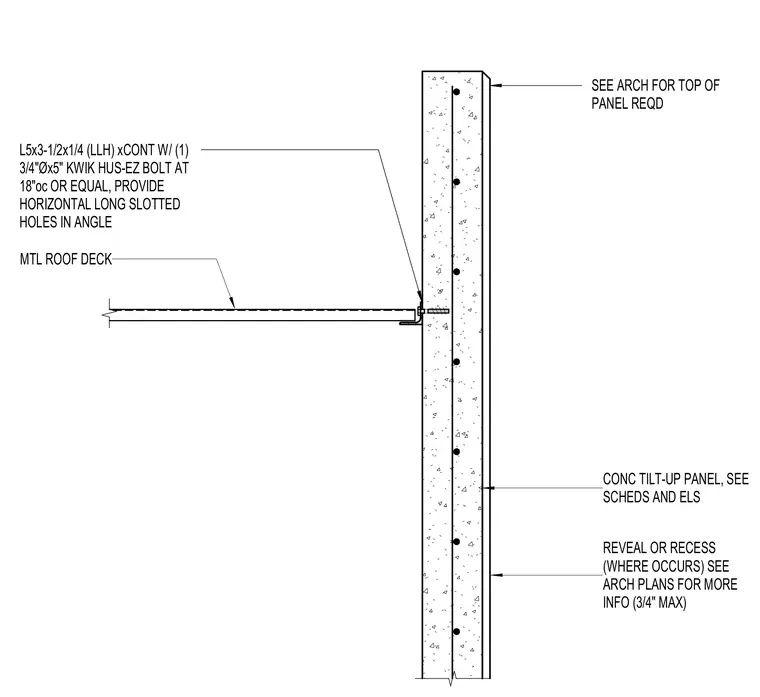

The assembly connects a metal roof deck to a concrete tilt-up wall panel using a continuous L5x3-1/2x1/4 structural steel angle with horizontal long slotted holes. The angle is fastened to the concrete panel with one 3/4-inch diameter by 5-inch Kwik Hus-Ez bolt or equal at 18 inches on center. The metal roof deck bears against the angle to allow for relative horizontal movement under slip conditions.
CONC TILT-UP PANEL, SEE SCHEDS AND ELS REVEAL OR RECESS (WHERE OCCURS) SEE ARCH PLANS FOR MORE INFO (3/4" MAX) MTL ROOF DECK SEE ARCH FOR TOP OF PANEL REQD L5x3-1/2x1/4 (LLH) xCONT W/ (1) 3/4"Øx5" KWIK HUS-EZ BOLT AT 18"oc OR EQUAL, PROVIDE HORIZONTAL LONG SLOTTED HOLES IN ANGLE
