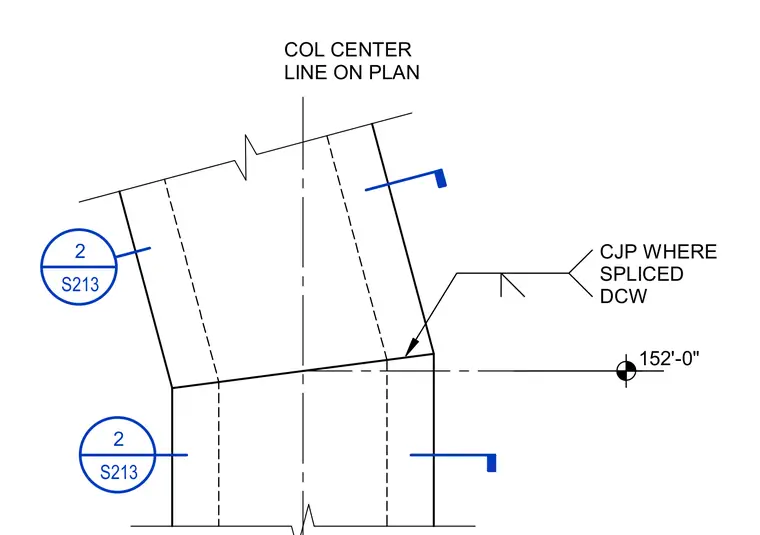

The vertical structural steel column alignment is set relative to the column centerline on plan at elevation 152'-0". A complete joint penetration weld is specified at the column splice location.
