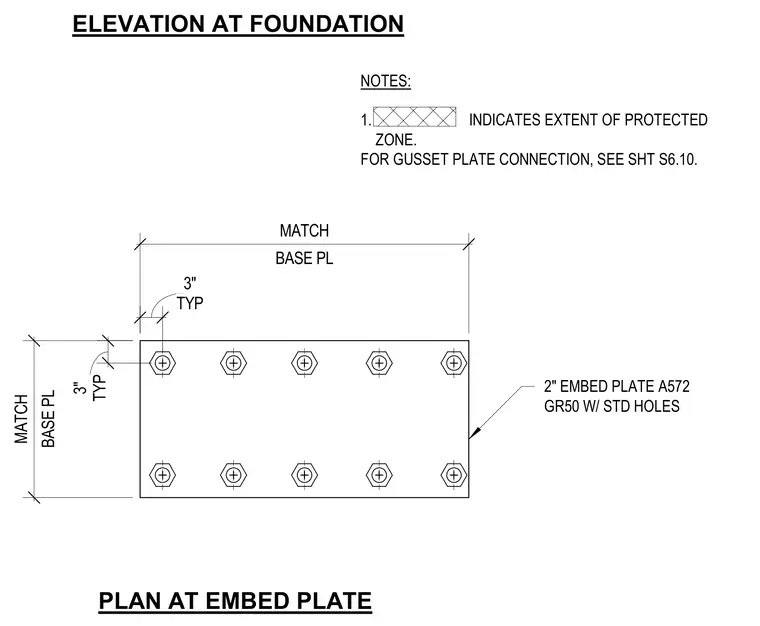

This structural detail shows a two-inch thick ASTM A572 Grade 50 steel embed plate with standard holes and anchor bolts in plan view. Dimensions indicate typical three-inch edge distances matching the base plate layout. General notes outline the extent of the protected zone and reference sheet S6.10 for the gusset plate connection.
TYP 3" TYP 3" BASE PL MATCH BASE PL MATCH PLAN AT EMBED PLATE ELEVATION AT FOUNDATION NOTES: 1. INDICATES EXTENT OF PROTECTED ZONE. FOR GUSSET PLATE CONNECTION, SEE SHT S6.10. 2" EMBED PLATE A572 GR50 W/ STD HOLES
