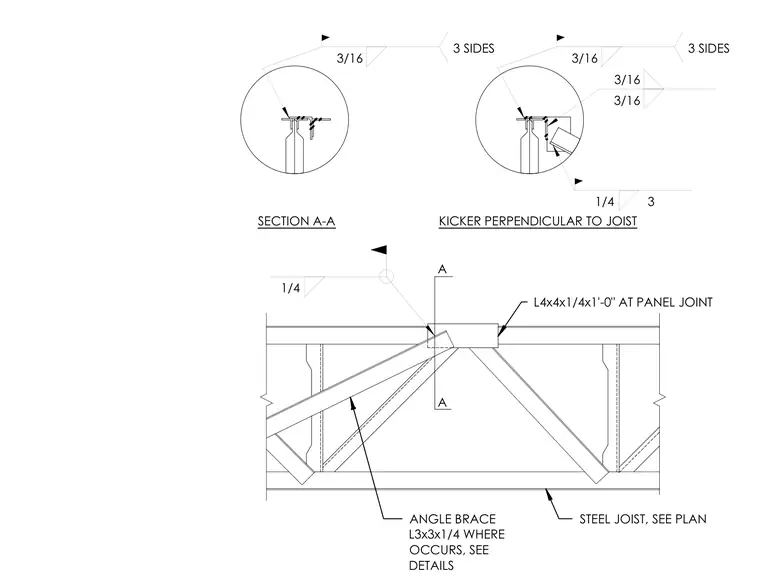

An angle brace consisting of an L3x3x1/4 member is connected where required to the open web steel joist. An L4x4x1/4 by 1'-0" plate is positioned at the panel joint, secured with 3/16 fillet welds on three sides. A perpendicular kicker angle is attached with a 1/4 fillet weld. Section A-A and kicker orientation details show the assembly alignment and connection geometry.
3/16 3 SIDES 3/16 3 SIDES 3/16 3/16 1/4 3 ANGLE BRACE L3x3x1/4 WHERE OCCURS, SEE DETAILS STEEL JOIST, SEE PLAN L4x4x1/4x1'-0" AT PANEL JOINT A A SECTION A-A KICKER PERPENDICULAR TO JOIST 1/4 1
