Structural · S-76KV7

BRBF Built-Up Stub Connection - Column Strong Axis

Materials

Concrete Steel

Elements

Columns Beams Connections / Plates

Connections

Braced Frame Connection Gusset Plate Welded Connection Bolted Connection

About this detail

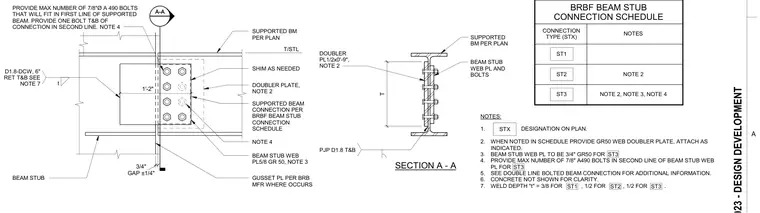

A buckling-restrained braced frame built-up beam stub connection frames into a column strong axis. The assembly features a supported beam connected via a beam stub web plate measuring five-eighths inches thick in Grade 50 steel, secured with seven-eighths-inch diameter A490 high-strength bolts. A one-half-inch by nine-inch doubler plate is provided when indicated by the connection schedule, attached with partial joint penetration welds designated as D1.8 top and bottom. A one-and-one-half-inch gap with a three-quarter-inch plus-or-minus-one-quarter-inch tolerance separates the elements, utilizing shims as needed. A gusset plate is provided per the buckling-restrained brace manufacturer where required, and weld depths t are specified at three-eighths inches for ST1 and one-half inch for ST2 and ST3. Concrete is omitted for clarity.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
