Mechanical · S-76EYA

Commercial Kitchen Exhaust Hood Section and Clearance Detail

Materials

Steel Stainless Steel

Elements

Stairs Drainage Reinforcing

Connections

Rebar Splice / Development

About this detail

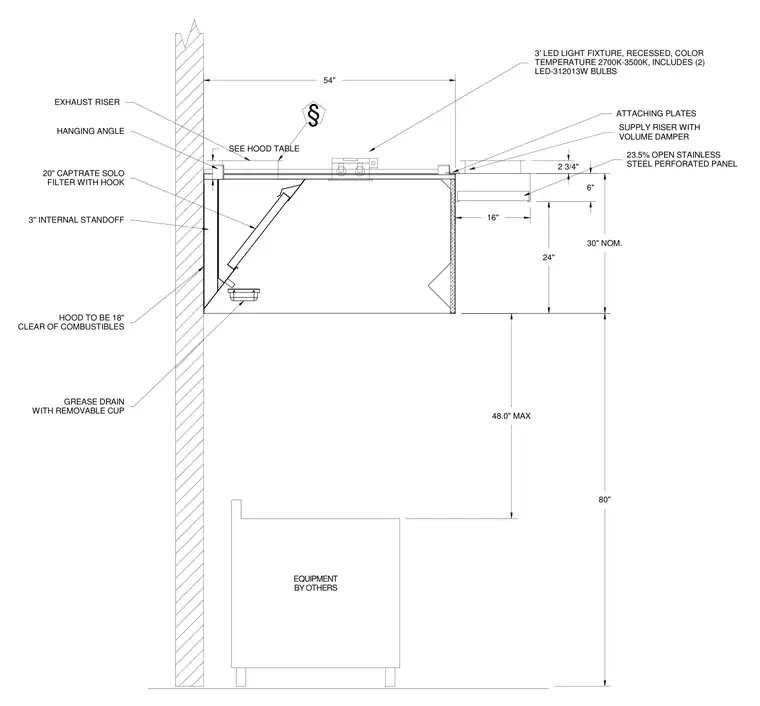

A commercial kitchen exhaust hood assembly mounts to a wall with a hanging angle. The interior contains a twenty-inch Captrate Solo filter with a hook, a three-inch internal standoff, and a three-inch internal grease drain with a removable cup. The top of the hood features an exhaust riser, a supply riser with a volume damper, a three-foot recessed LED light fixture with two LED-312013W bulbs, and a twenty-three and five-tenths percent open stainless steel perforated panel with attaching plates. The hood maintains an eighteen-inch clearance from combustibles, with a maximum clearance of forty-eight inches above equipment by others and an overall nominal height of eighty inches.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
