The assembly consists of a greased and sheathed strand transitioning into a clear tube filled with grease. An anchor plate receives the strand, secured by wedges and an end cap that is also filled with grease. The end of the sheathing maintains a minimum required overlap per the general notes. The complete anchor assembly is embedded within the concrete at the fixed end.

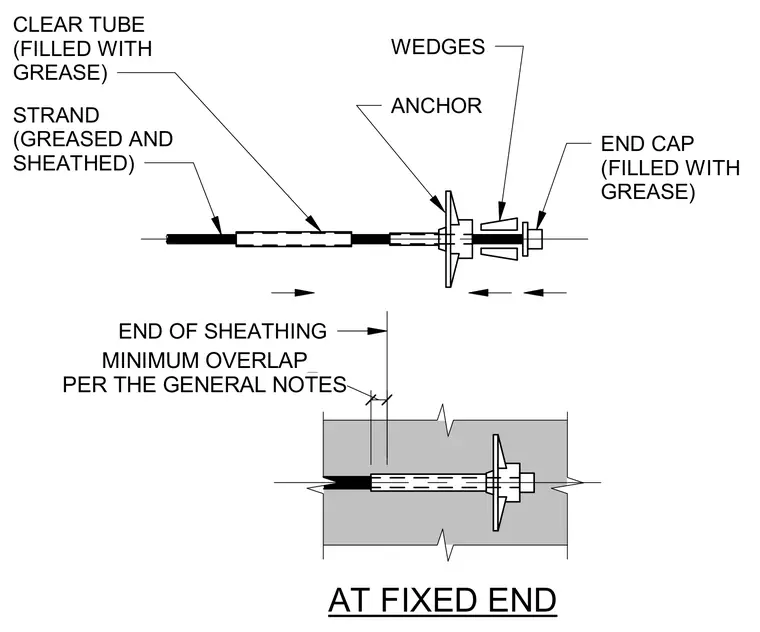

CLEAR TUBE (FILLED WITH GREASE) STRAND (GREASED AND SHEATHED) WEDGES ANCHOR END CAP (FILLED WITH GREASE) END OF SHEATHING PER THE GENERAL NOTES MINIMUM OVERLAP AT FIXED END
