Steel floor beams connect to a structural steel column flange using a bolted single-plate shear tab welded to the column. The shear tab thickness is sized as the beam web plus one-quarter inch, with bolt sizing and quantities determined per notes. Continuity plates are provided at the top and bottom column flanges, using the larger thickness of the connecting beam flanges. Additional rows of bolts are included as required, with minimum edge distances and spacings maintained.

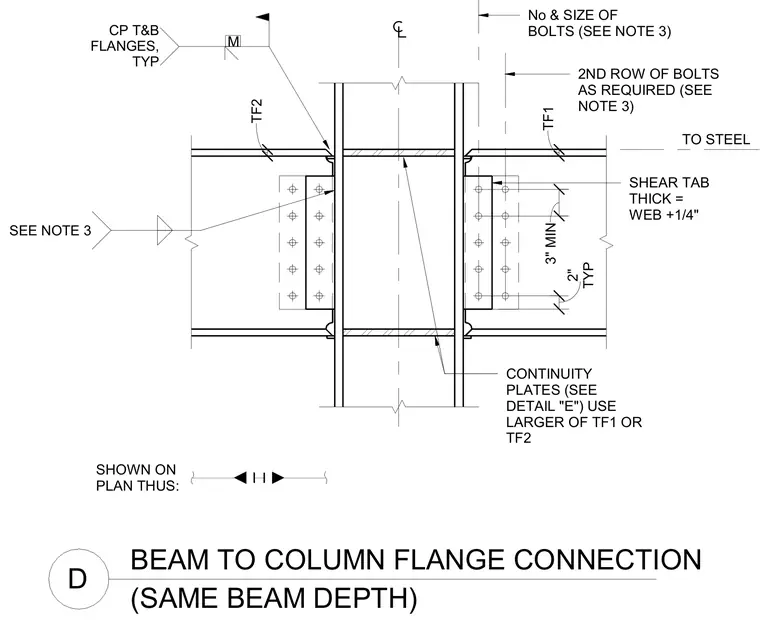

BEAM TO COLUMN FLANGE CONNECTION D (SAME BEAM DEPTH) TO STEEL No & SIZE OF BOLTS (SEE NOTE 3) 2ND ROW OF BOLTS AS REQUIRED (SEE NOTE 3) CONTINUITY PLATES (SEE DETAIL "E") USE LARGER OF TF1 OR TF2 SHEAR TAB THICK = WEB +1/4" TF2 TF1 3" MIN TYP 2" SHOWN ON PLAN THUS: SEE NOTE 3 CP T&B FLANGES, TYP M
