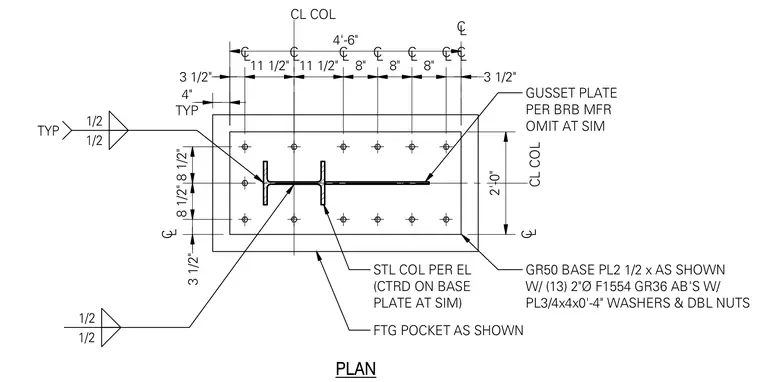

A steel column base plate assembly is centered on a footing pocket as shown. A Grade 50 base plate with a thickness of 2 1/2 inches is anchored using thirteen 2-inch diameter ASTM F1554 Grade 36 anchor bolts equipped with 3/4-inch by 4-inch by 0'-4" washers and double nuts. A gusset plate per the buckling-restrained brace manufacturer is connected to the column flange, with instructions to omit at similar conditions. The steel column is centered on the base plate.
C L 2'-0" C L 4'-6" C L C L C L C L C L C L C L 3 1/2" 11 1/2" 11 1/2" 8" 8" 8" 3 1/2" TYP 4" C L 8 1/2" 8 1/2" 3 1/2" CL COL CL COL GUSSET PLATE PER BRB MFR OMIT AT SIM GR50 BASE PL2 1/2 x AS SHOWN W/ (13) 2"Ø F1554 GR36 AB'S W/ PL3/4x4x0'-4" WASHERS & DBL NUTS STL COL PER EL (CTRD ON BASE PLATE AT SIM) FTG POCKET AS SHOWN 1/2 1/2 1/2 1/2 TYP PLAN
