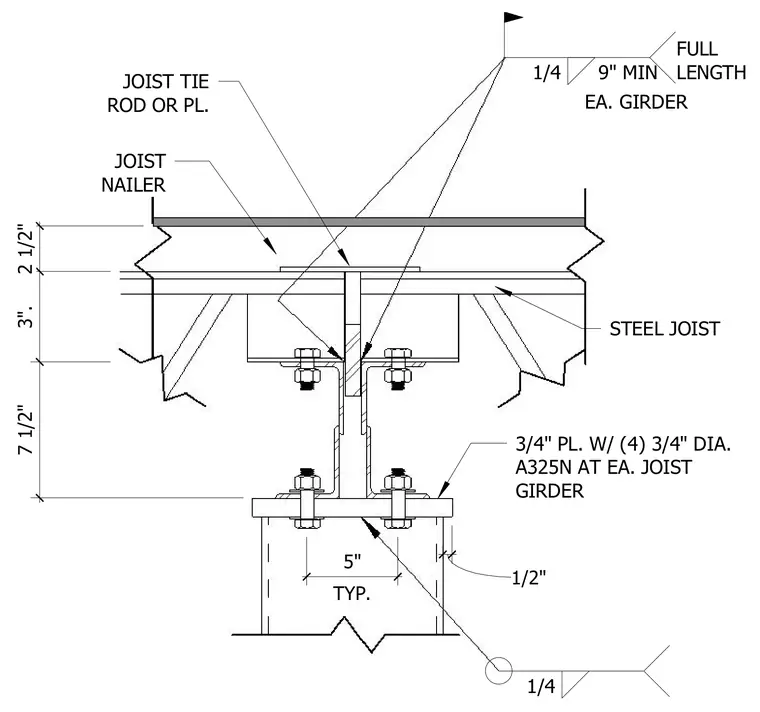

An open-web steel joist bears atop a steel joist girder, secured with a top-chord tie rod or plate and a four-bolt connection. A three-quarter-inch plate welded with a quarter-inch fillet weld joins the assembly. A joist nailer sits above the top chord. Fillet welds of quarter-inch size are specified at nine inches minimum for the full length at each girder.
EA. GIRDER 3/4" PL. W/ (4) 3/4" DIA. A325N AT EA. JOIST GIRDER STEEL JOIST JOIST TIE ROD OR PL. JOIST NAILER 1/4 1/4 9" MIN FULL LENGTH 1/2" TYP. 5" 7 1/2" 3". 2 1/2"
