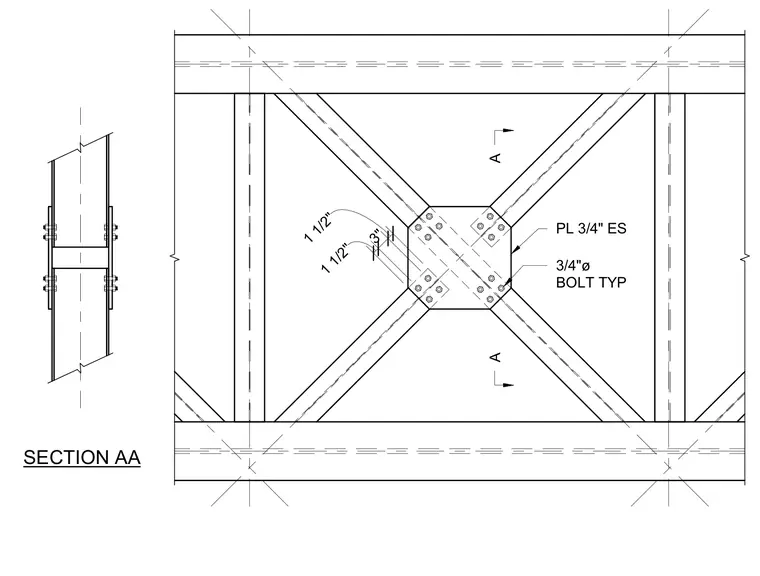

Truss web members connect to the chord members and intersecting diagonals using a three-quarter inch thick gusset plate on each side. The joint is fastened with three-quarter inch diameter bolts configured with typical edge distances and spacing dimensions. A corresponding cross-section details the plate alignment and fastener placement relative to the structural members.
