Structural · S-763YZ

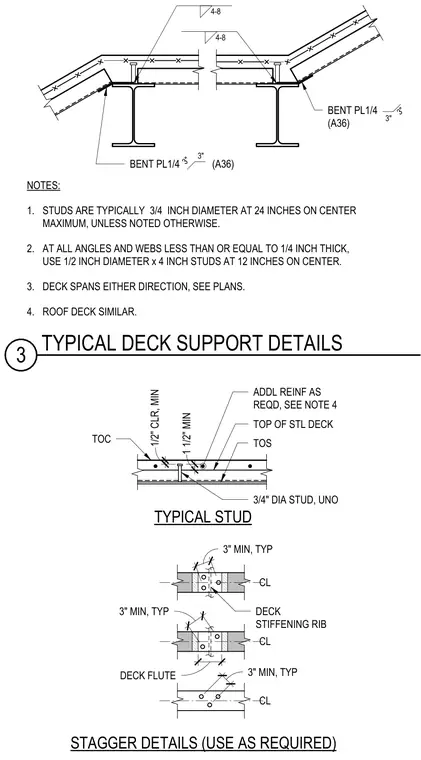

Typical Steel Deck Support and Stud Details

Materials

Elements

About this detail

Bent A36 plates support metal decking over steel beams. Three-quarter-inch diameter shear studs are installed through the deck into the supporting steel, spaced at twenty-four inches on center maximum unless noted otherwise. Additional reinforcement is provided as required by structural notes. Alternate details show deck flute alignment, centerlines, and staggering requirements for deck stiffening ribs. Specific edge clearances and minimum spacing dimensions are called out for proper stud installation.
