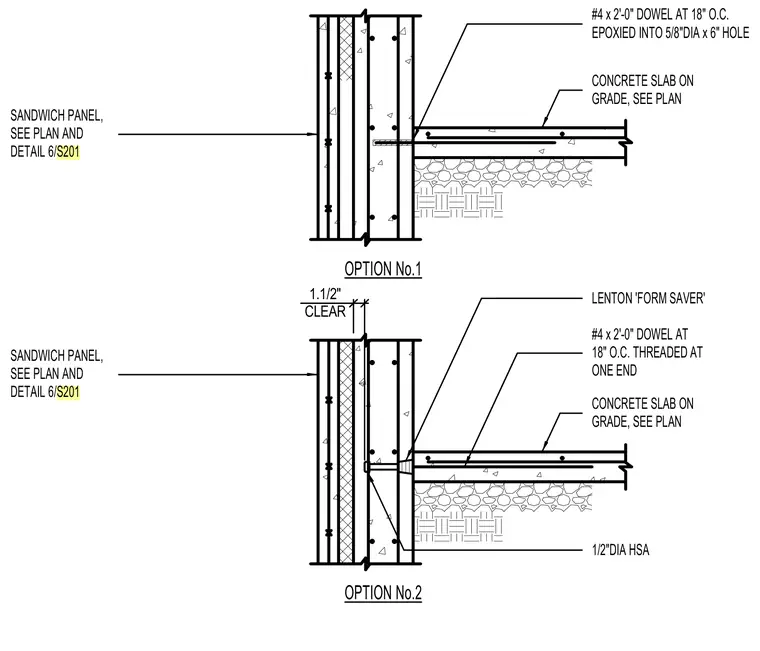

Two alternative connection options join a concrete slab on grade to a sandwich panel. Option No. 1 utilizes a number 4 by 2-foot dowel spaced at 18 inches on center, epoxied into a 5/8-inch diameter by 6-inch deep hole in the panel. Option No. 2 provides a 1-1/2-inch clear space using a Lenton Form Saver threaded dowel anchored with a 1/2-inch diameter HSA anchor.
OPTION No.1 OPTION No.2 SANDWICH PANEL, SEE PLAN AND DETAIL 6/S201 CONCRETE SLAB ON GRADE, SEE PLAN CONCRETE SLAB ON GRADE, SEE PLAN #4 x 2'-0" DOWEL AT 18" O.C. EPOXIED INTO 5/8"DIA x 6" HOLE #4 x 2'-0" DOWEL AT 18" O.C. THREADED AT ONE END 1/2"DIA HSA LENTON 'FORM SAVER' SANDWICH PANEL, SEE PLAN AND DETAIL 6/S201 1.1/2" CLEAR
